Manage Edge Proxy

Once created, a proxy can be reconfigured or deleted, and traffic statistics are available in real time from the Gcore Customer Portal.

​

Protected IPs

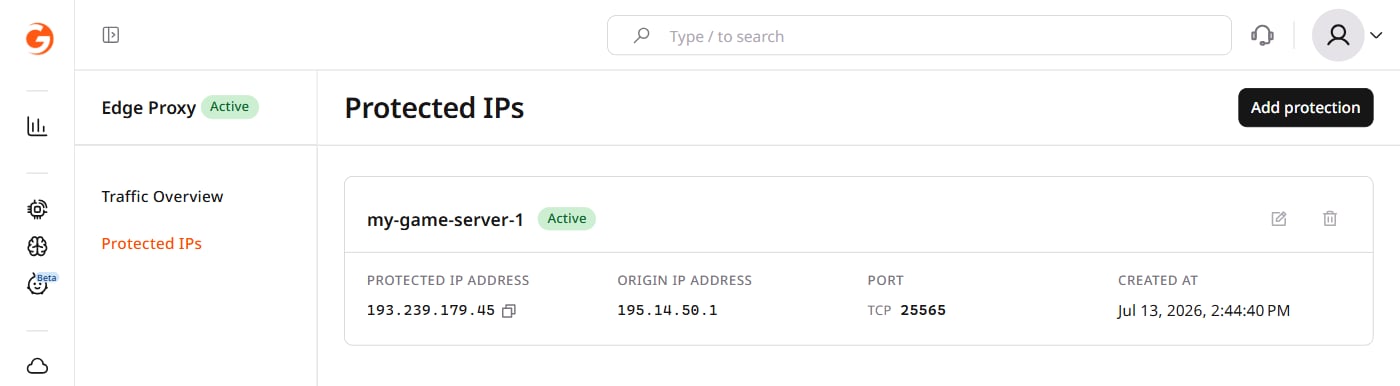

Navigate to Security → Edge Proxy → Protected IPs to view all configured proxies. The list shows each proxy’s name, status, protected IP address, origin IP address, port and protocol, and creation date.

​

Edit a proxy

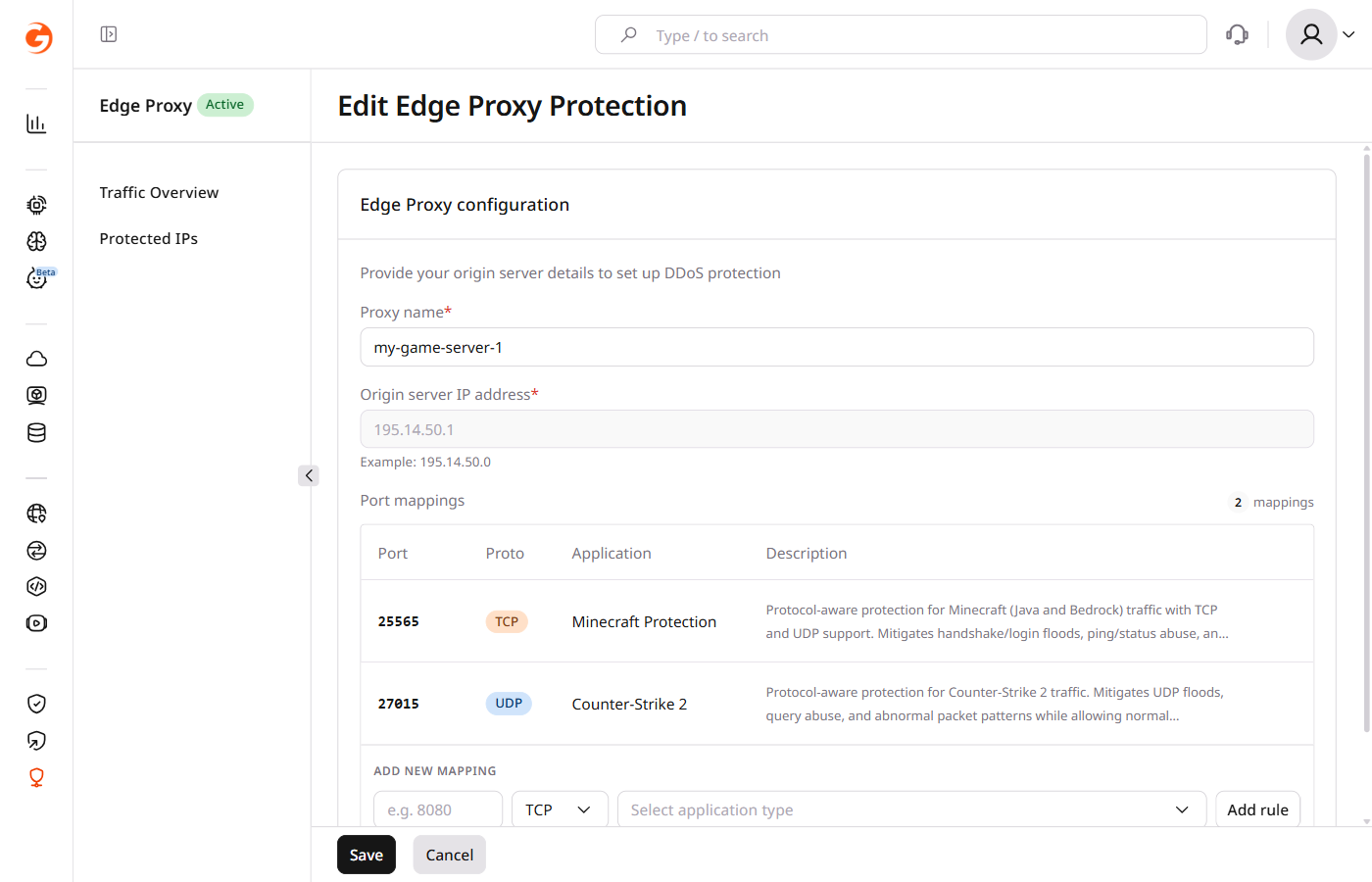

To rename a proxy or change its port mappings, click Edit protection next to the proxy.

• Change the proxy name
• Add port mappings — click Add rule after filling in the port, protocol, and application type
• Remove port mappings — click the remove icon on the mapping row

The origin server IP address cannot be changed after creation. To use a different origin IP, delete the proxy and create a new one. Click Save to apply the changes.

​

Delete a proxy

Click Delete protection next to the proxy and confirm the action in the dialog. Deleting a proxy stops all traffic forwarding immediately. Clients connecting to the protected IP will lose access.

​

Monitor traffic

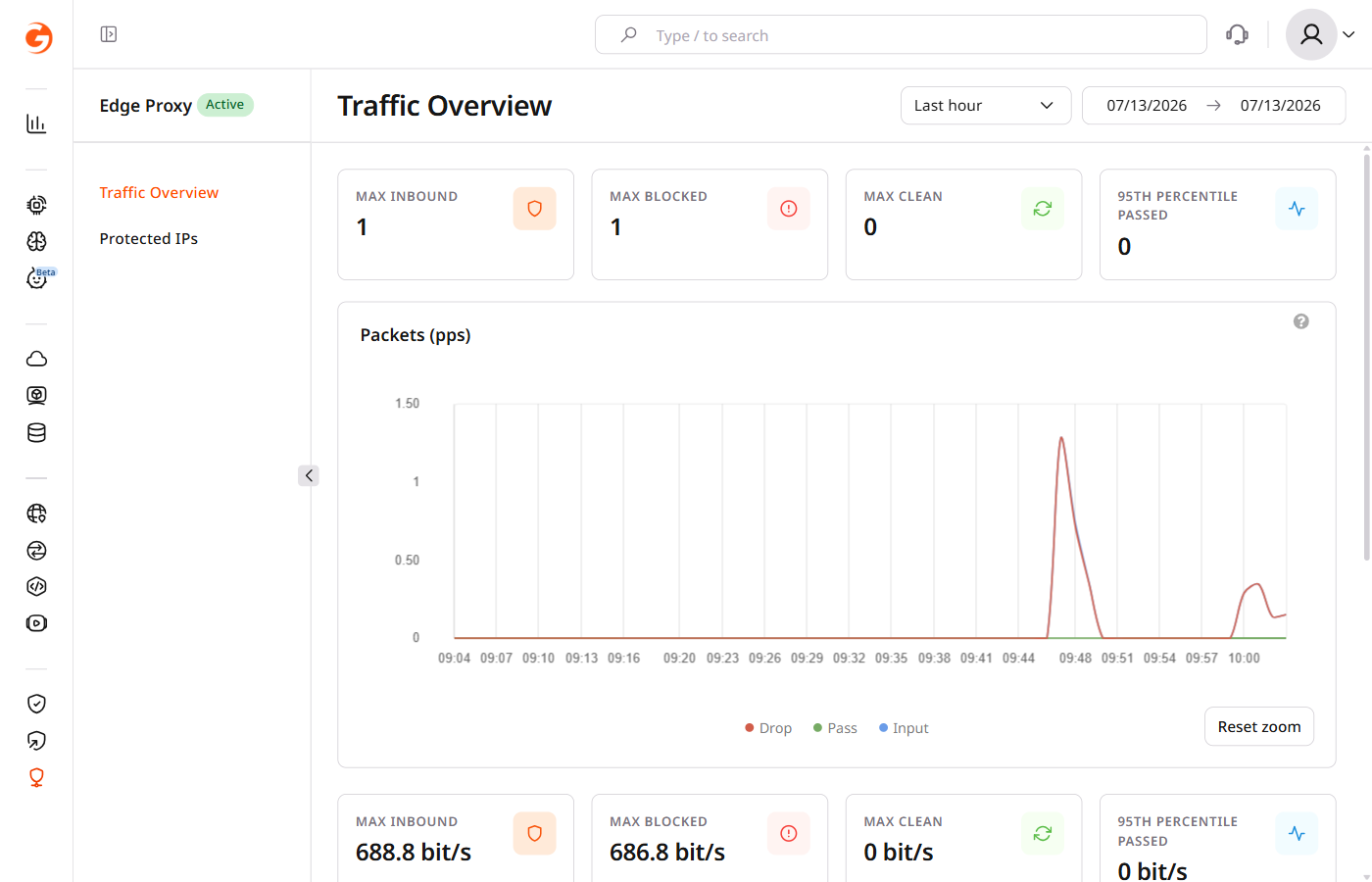

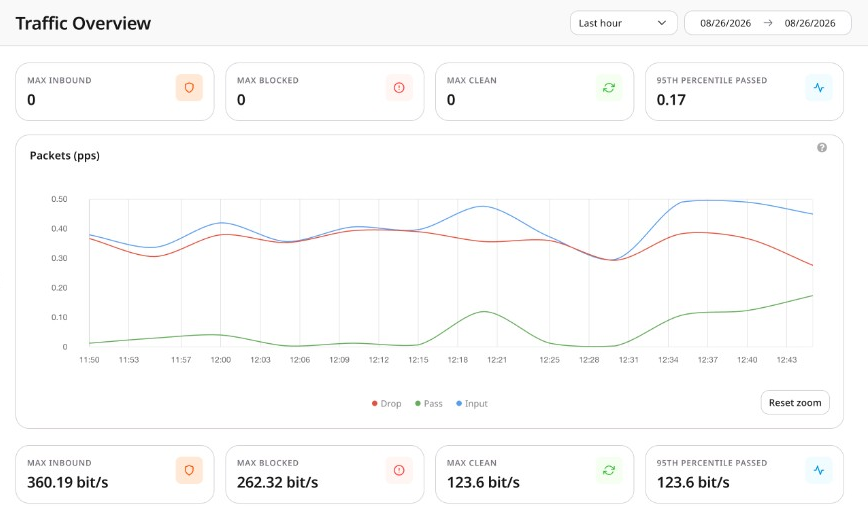

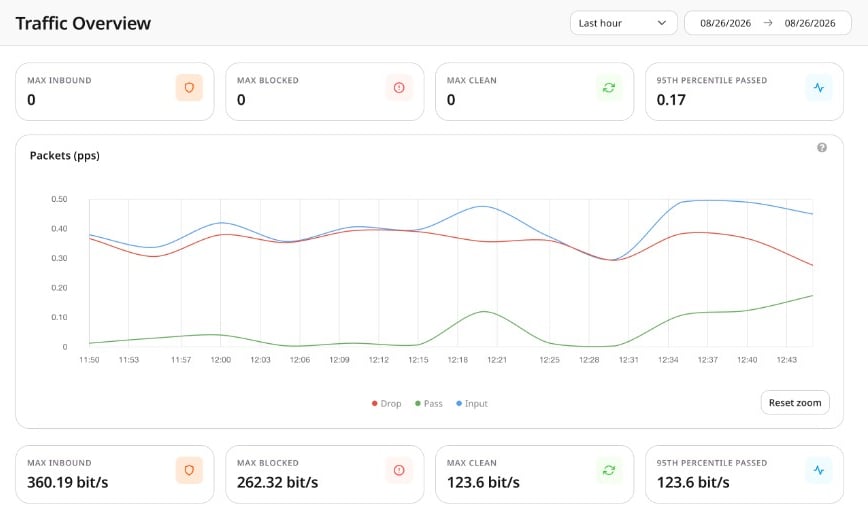

Traffic Overview (Security → Edge Proxy → Traffic Overview) displays aggregated traffic across all active proxies.

​

Metrics

The page shows four metrics for packets (pps) and bits (bps):

​

Charts

The page includes two charts:

• Packets (pps) — traffic measured in packets per second
• Bits (bps) — traffic measured in bits per second

Each chart plots three series:

• Input — all traffic received at the Edge Proxy endpoint
• Drop — traffic blocked by the DDoS filter
• Pass — clean traffic forwarded to the origin server

Click a series label to show or hide it. Click and drag on the chart to zoom into a time interval. Click Reset zoom to return to the full view.

​

Time range

Use the dropdown to select a preset range: Last hour, Last 4 hours, Last 8 hours, Last 24 hours, Last 48 hours, Last week, Last month, or Last 3 months. Set a custom range using the date fields next to the dropdown.
